Description
As many of our customers know, our IAT (Intake Air Temperature) Kit for the 10-19 BMW S1000RR has been extremely popular and shows noticeable gains on the street and even dyno. This IAT strategy was first used by Dinan (BMW) in the 1990’s. However, the 2020 S1000RR included some serious changes and required a new strategy for this project.

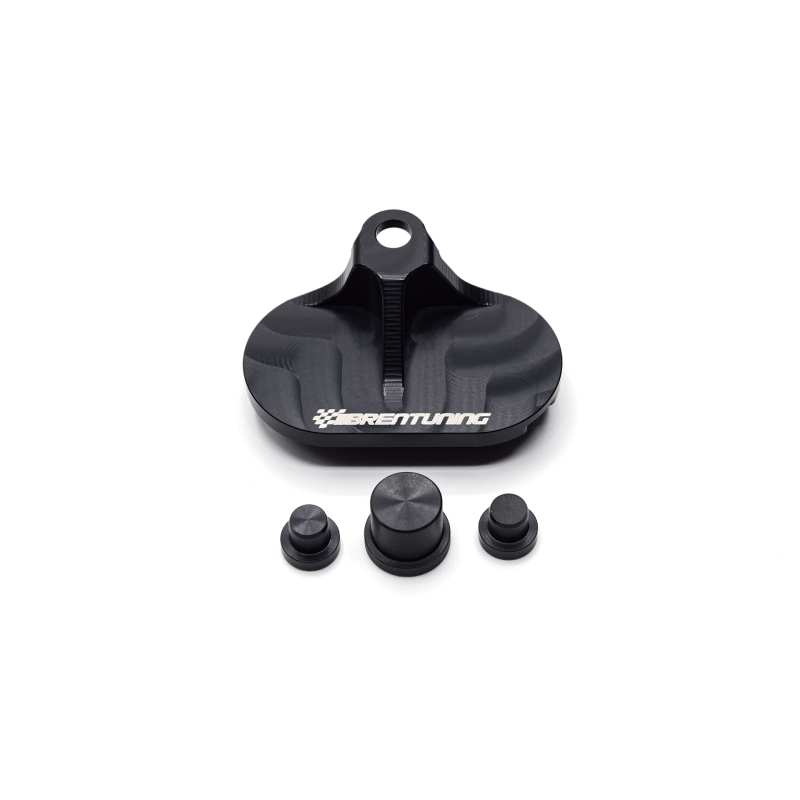

New for 2020 is our Intake Flapper Removal Kit. The 2020 S1000RR now has flappers in the intake tract, these flappers only allow a small amount of air to pass through to the engine until 6000 RPM when the flappers finally open. When the flaps aren’t open it allows for stagnant, hot air to raise IAT readings and block air flow to the engine. Hot air and low airflow equals less power. This is why we developed our IAT kit years ago. The flapper removal is just an add-on progression to the new model. From scratch we developed block off plates and a whole new IAT relocation kit (which you can find Here) as the harness has changed from the 10-19 models. All parts fit very snug and are made from billet aluminum for weight consideration and longevity.
The new airbox “flapper” design was made to reduce engine noise at low RPM’s. Instead of the previous foam restrictor that we saw in the 17-19 models, the 2020 S1000RR almost completely closes off the airbox in certain scenarios. This lack of airflow leads to very high intake temperatures. The ECU’s strategy is designed around this “heat soak”. Timing retard is based on a “per gear” and “per RPM” strategy and will not taper off until higher gears due to the airflow and RPM needed to open the flappers. This is vastly different than previous years and more similar to the BMW GS1200’s (which also benefited greatly from this kind of modification). The first half of the throttle angles (0-50% throttle, commanded) and first three gears are heavily timing retarded on the stock calibration. This is due to hot and stagnant air that sits in the airbox while the flappers stay closed. The design of the OEM flapper servo creates an unnecessary bottleneck of airflow inside the airbox at higher speeds. This distributes air to the inner most cylinders, negating performance and the maximum “ram air” effect the factory airbox can provide.
